Turnstiles, Speed Gates & Flap Barriers: The Complete Guide for UAE Facilities
VertiLinks Technologies designs and installs turnstile and speed gate systems for building lobbies, metro stations, stadiums, office campuses, educational institutions, gyms, and industrial facilities across the UAE. We are authorised partners for ZKTeco SpeedFace-integrated turnstiles and CAME's premium pedestrian barrier range, providing solutions that balance security, throughput, aesthetics, and compliance with UAE building regulations and fire safety codes.
Physical access control at pedestrian entry points serves multiple objectives simultaneously: it prevents tailgating (an unauthorised person following an authorised person through a secured door), enforces credential verification, creates an accurate digital record of who is in a building at any given time for emergency muster reporting, and presents a professional, branded impression to visitors and employees. The right turnstile or speed gate system achieves all of these objectives while maintaining a throughput rate that eliminates queuing during peak entry periods.
Types of Turnstiles and Barriers: A Detailed Comparison

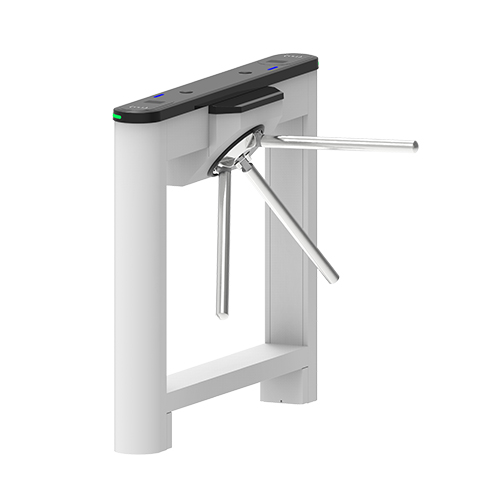

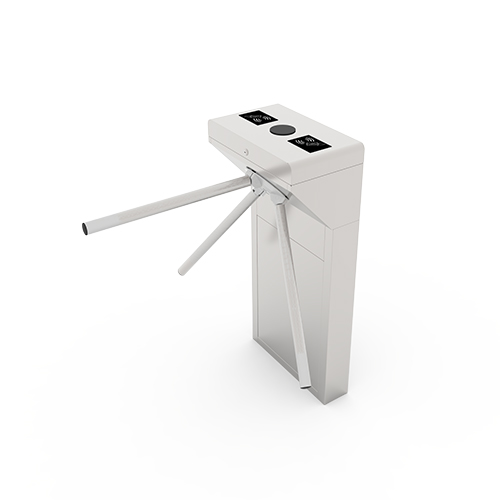

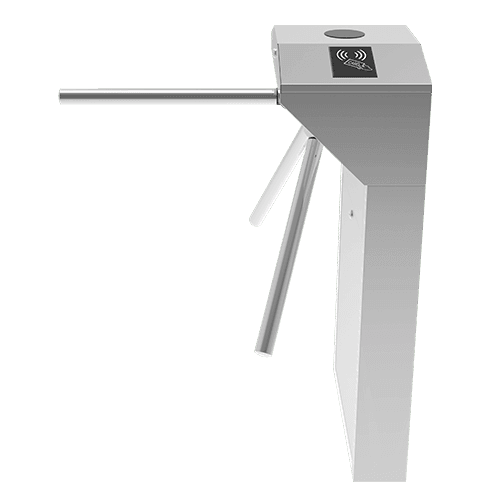

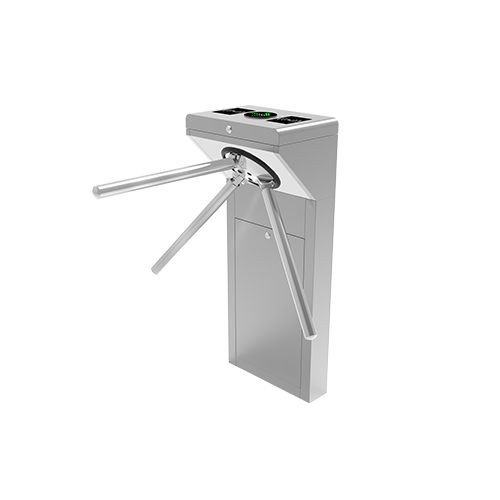

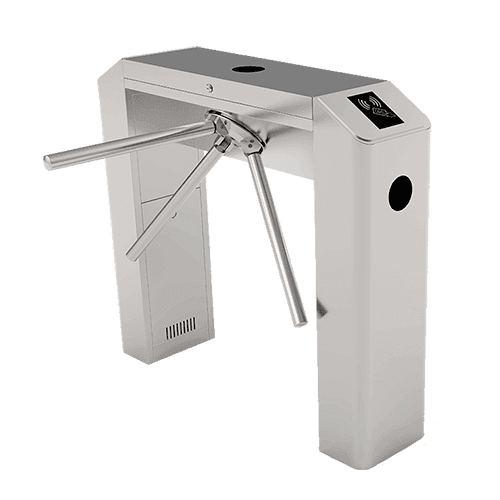

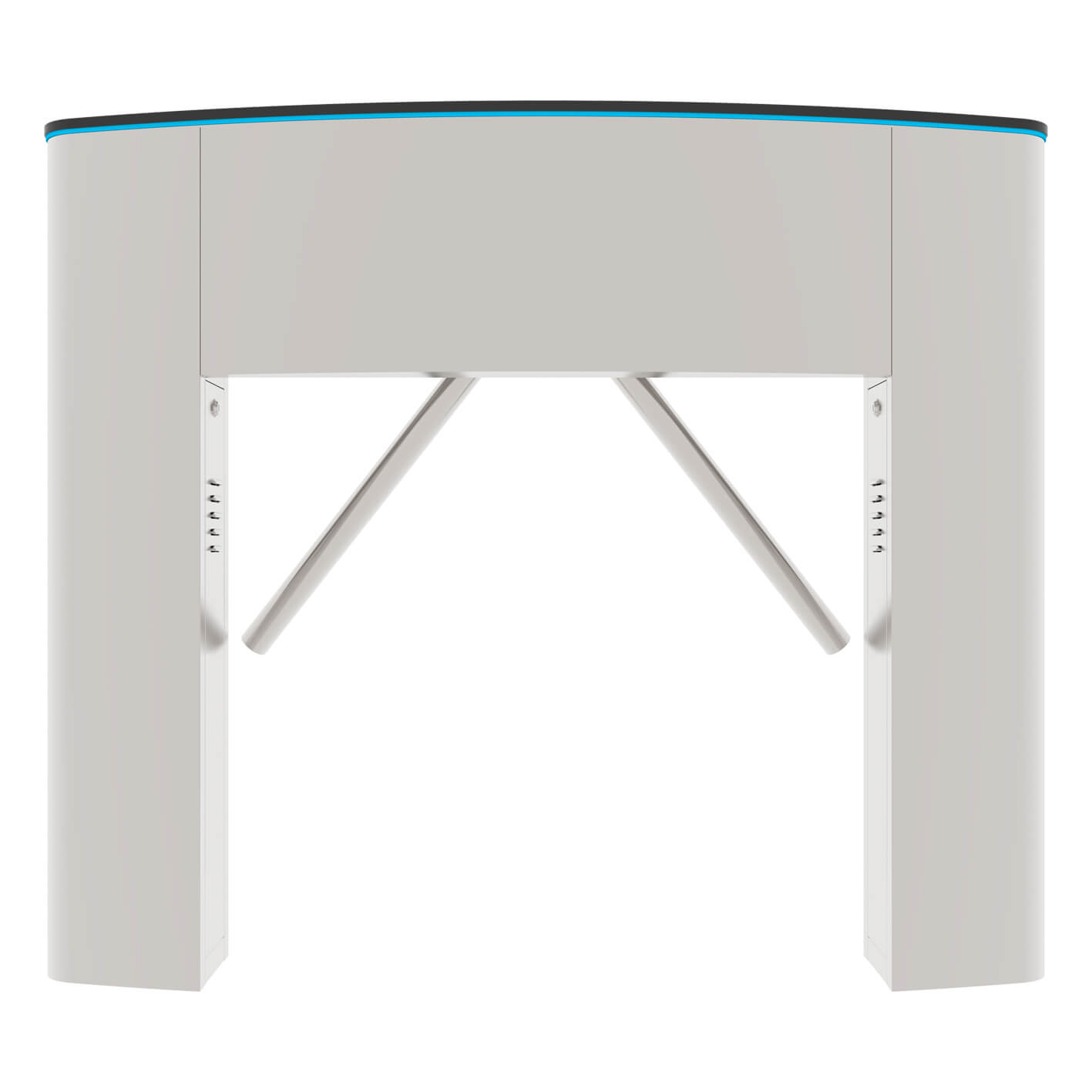

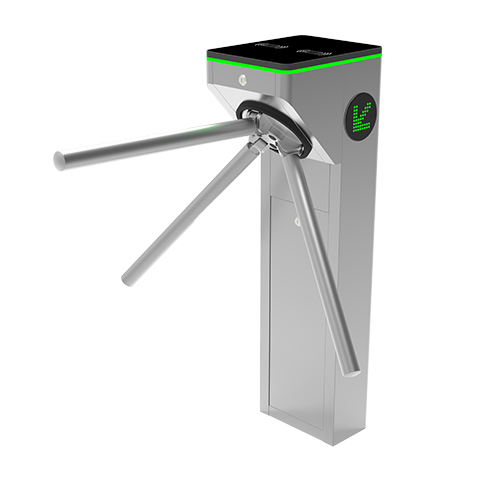

The tripod turnstile is the most widely deployed pedestrian control device globally, with a three-arm rotating mechanism that permits one person to pass per credential presentation. Tripod turnstiles are cost-effective (typically 30–50% less expensive than flap barriers), mechanically robust with MTBF ratings exceeding 5 million cycles, and suitable for high-throughput environments where a throughput rate of 25–35 persons per minute is adequate. ZKTeco TS2222 and TS1222 series tripod turnstiles feature full-height stainless steel 304 housings, LED directional indicators, and RS-485 or TCP/IP connectivity. The limitation of tripod turnstiles is their inability to accommodate wheelchair users, prams, large luggage, or delivery trolleys — they are not ADA-compliant and require a separate accessible passage for users with mobility limitations.

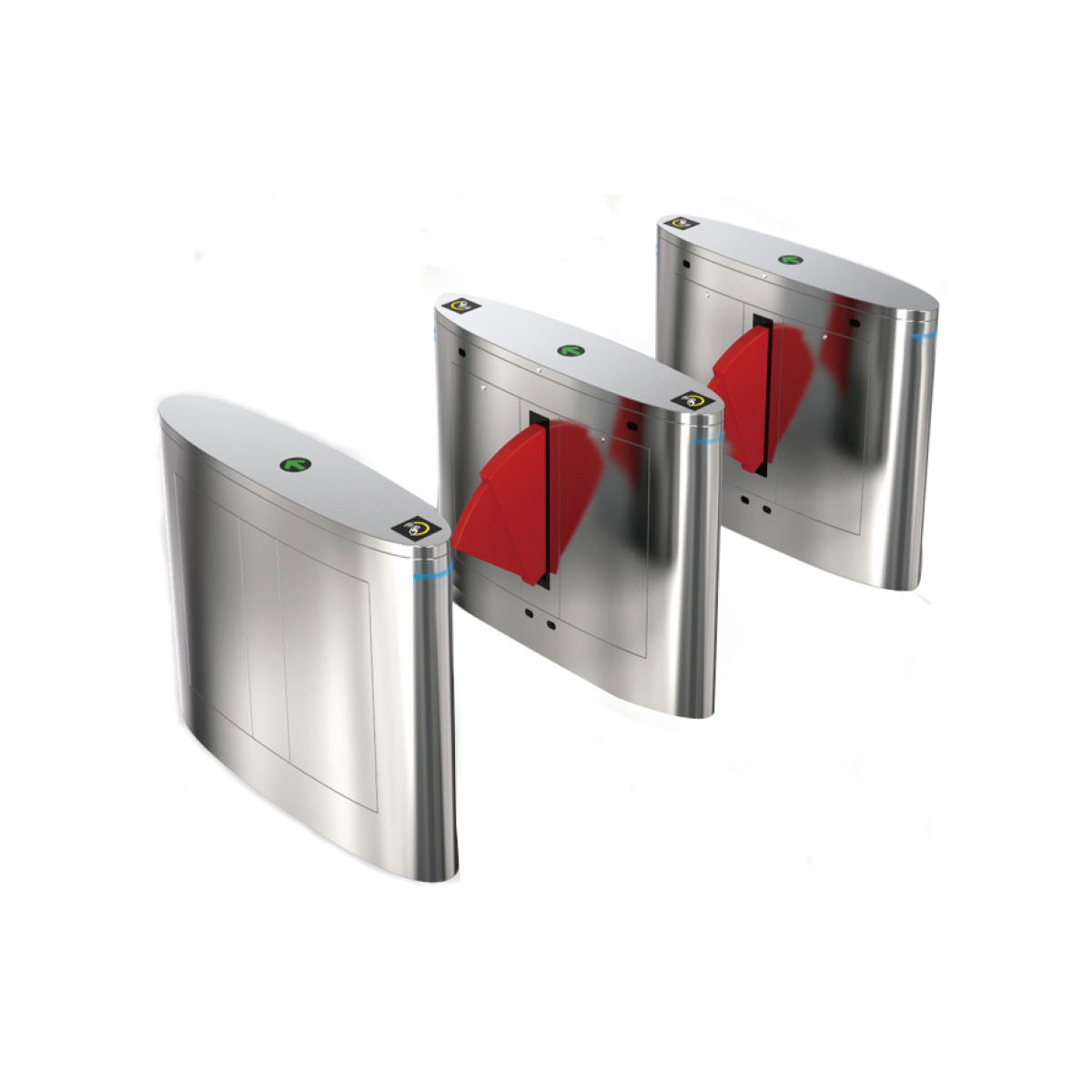

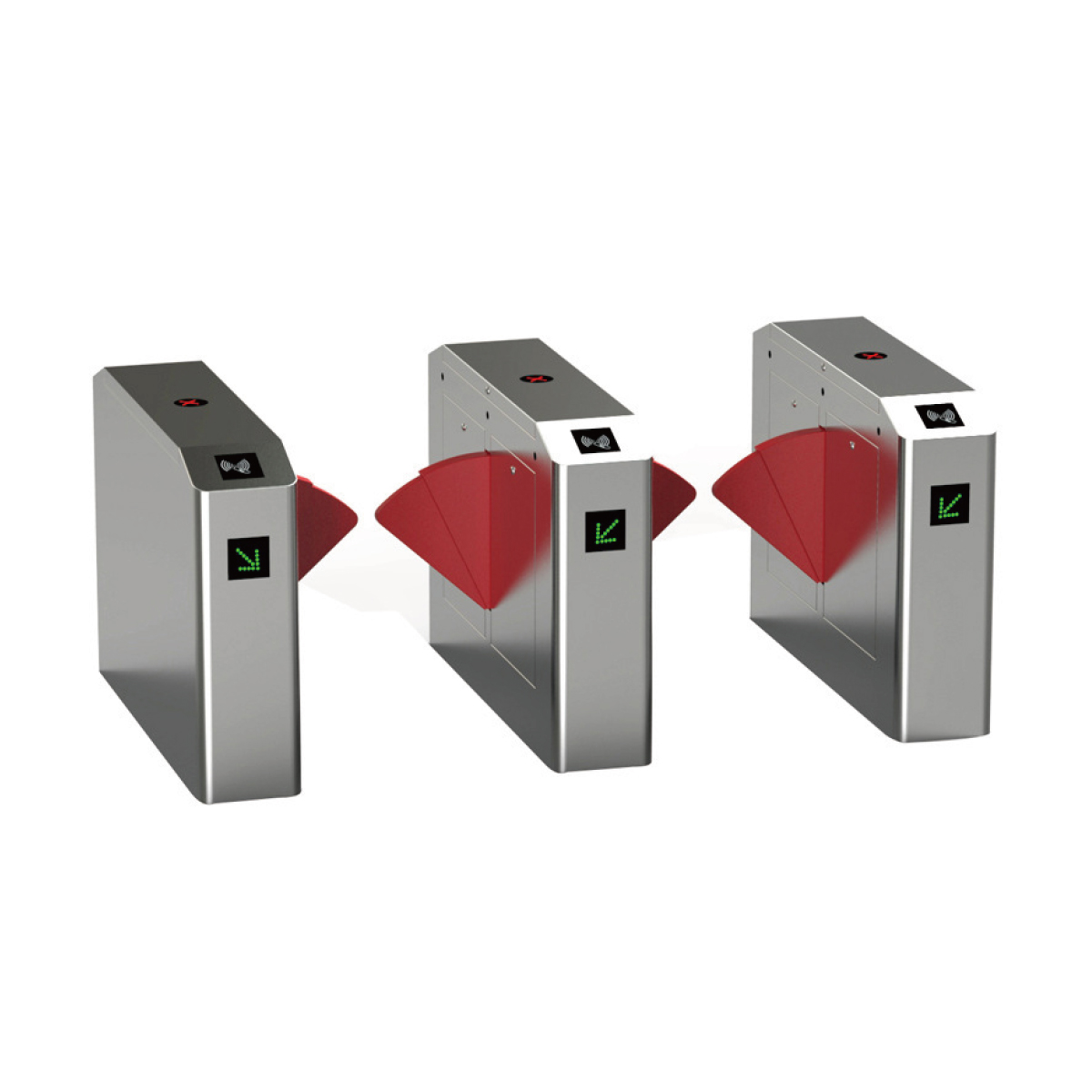

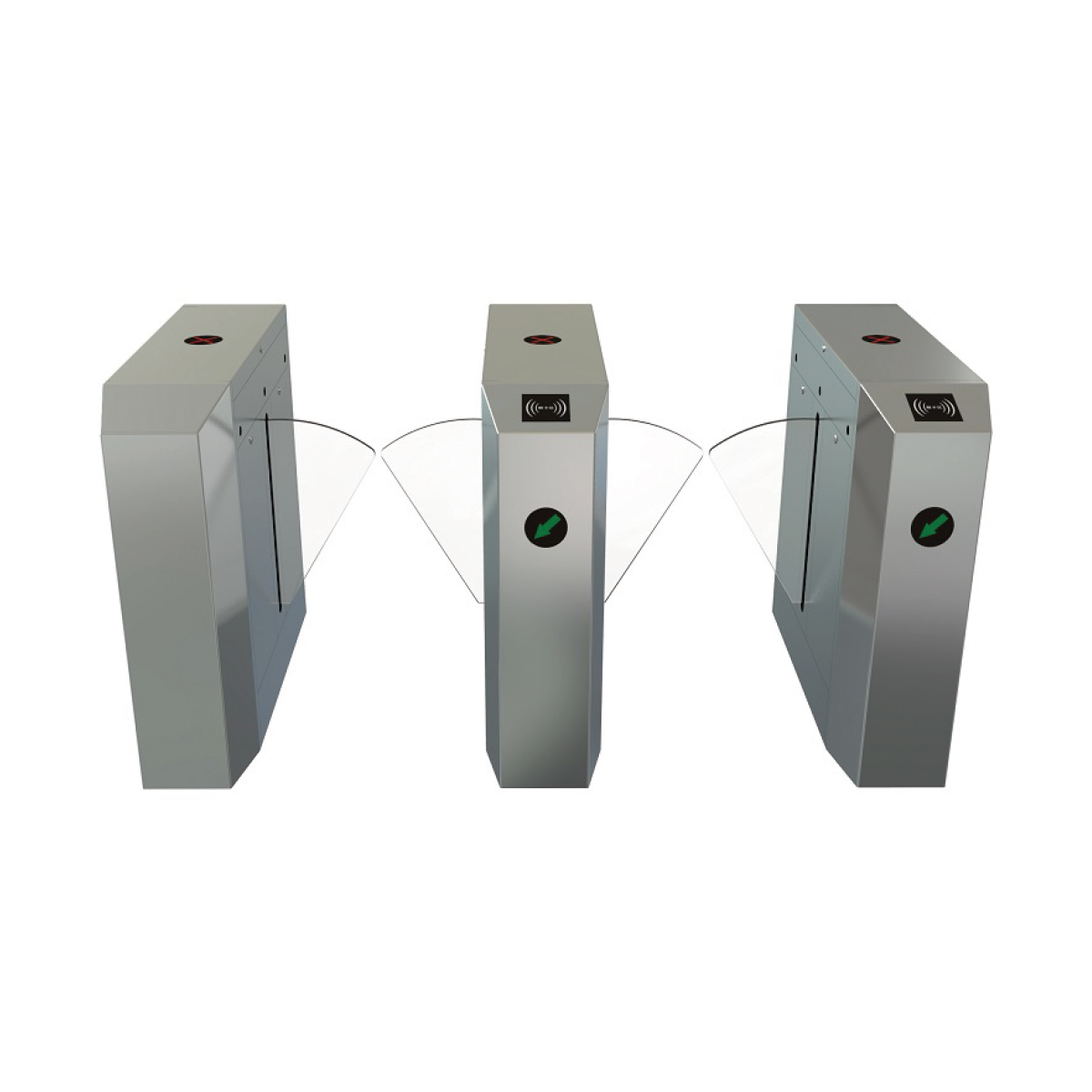

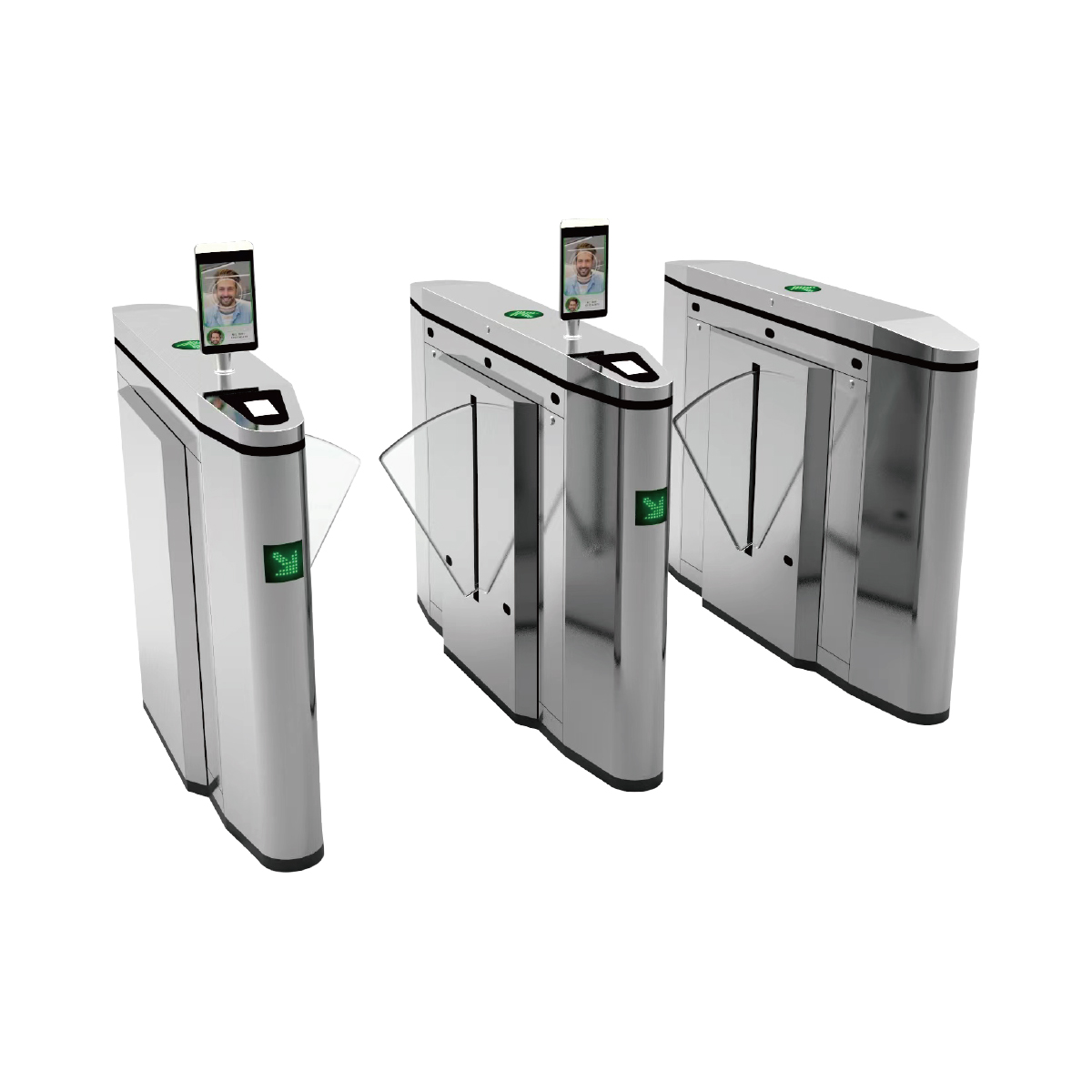

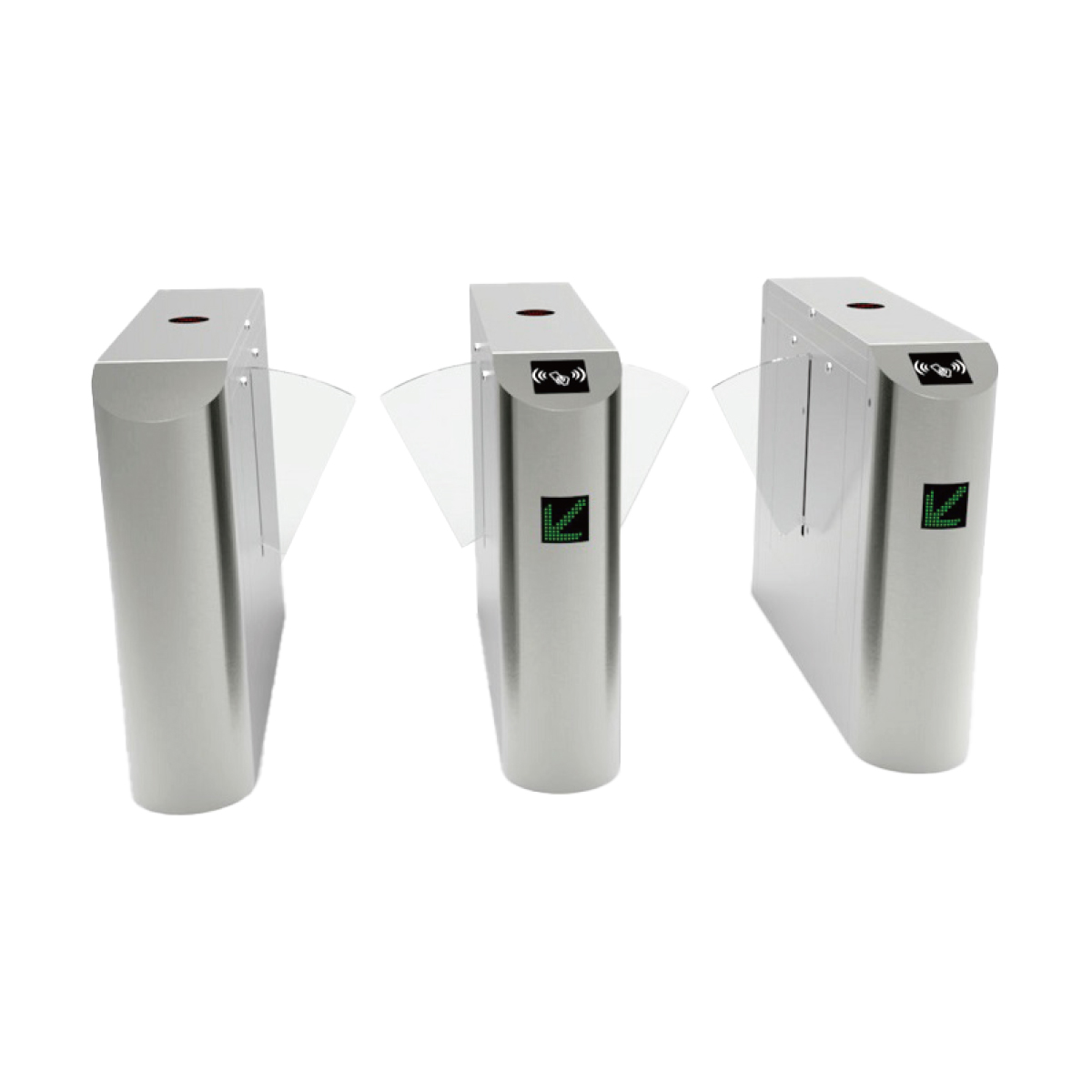

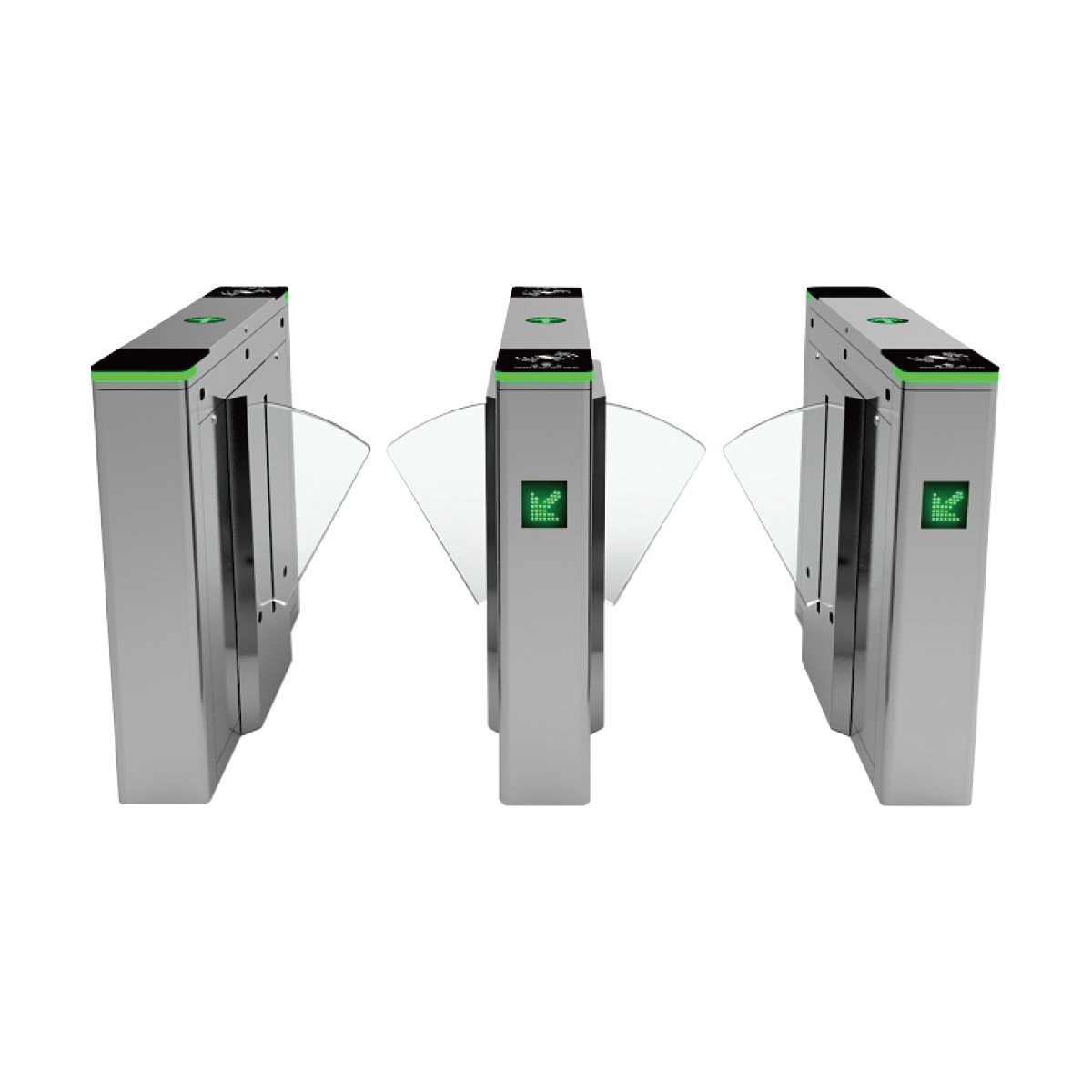

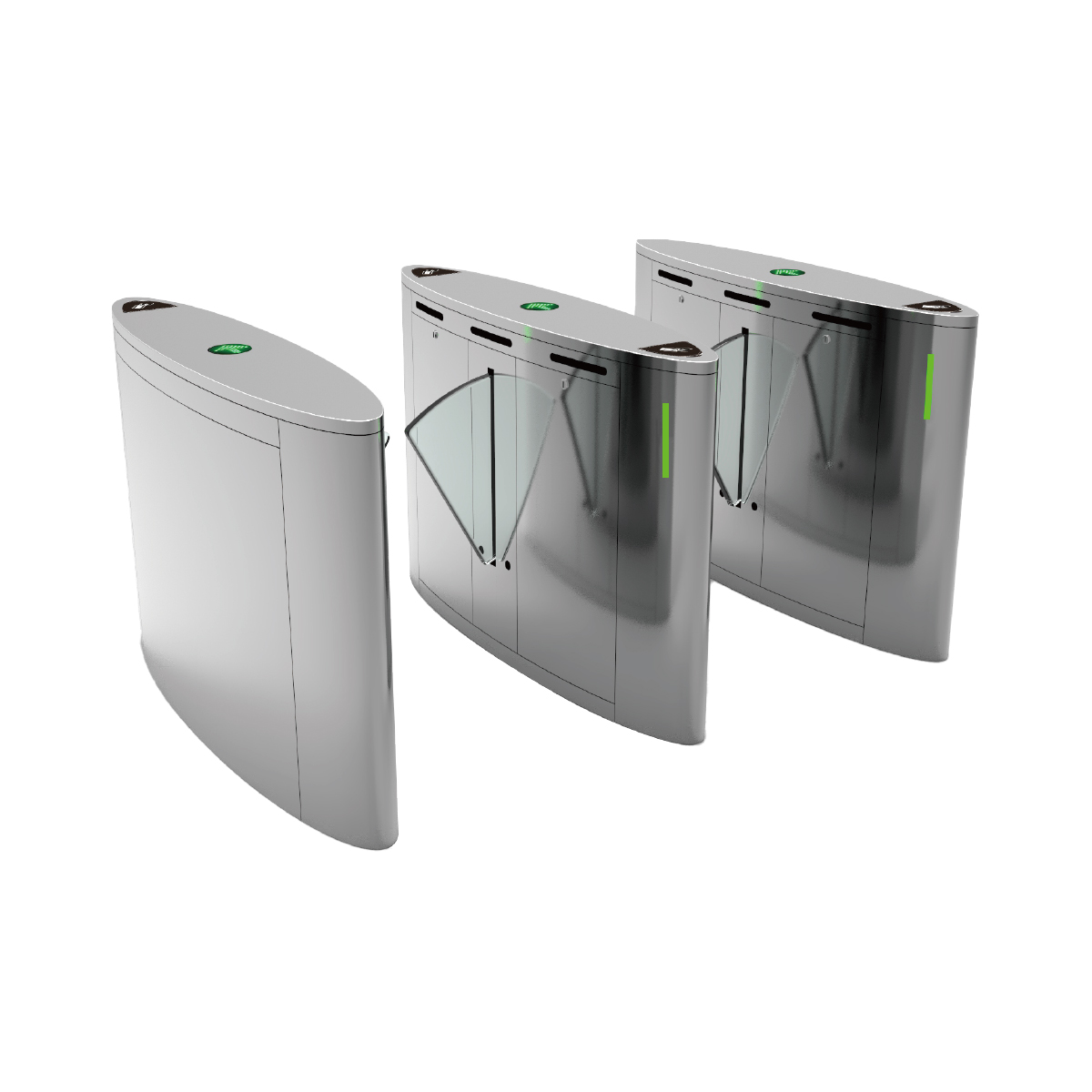

Flap barriers (also called wing barriers or paddle barriers) are the preferred choice for corporate lobbies, financial institutions, and any environment where aesthetics are a priority alongside security. CAME's Fastpass and ZKTeco's FBL series present a sleek, low-profile cabinet (typically 1,000–1,200mm high, 180–220mm wide) with retractable transparent or stainless panels that open in under 0.5 seconds. The pass width of 600–900mm accommodates wheelchair users, making flap barriers inherently ADA-compliant without requiring a separate accessible lane. Anti-tailgating infrared barrier arrays detect simultaneous attempts to pass by two individuals and trigger an alarm, maintaining one-person-per-transaction integrity without the mechanical resistance of a tripod arm.

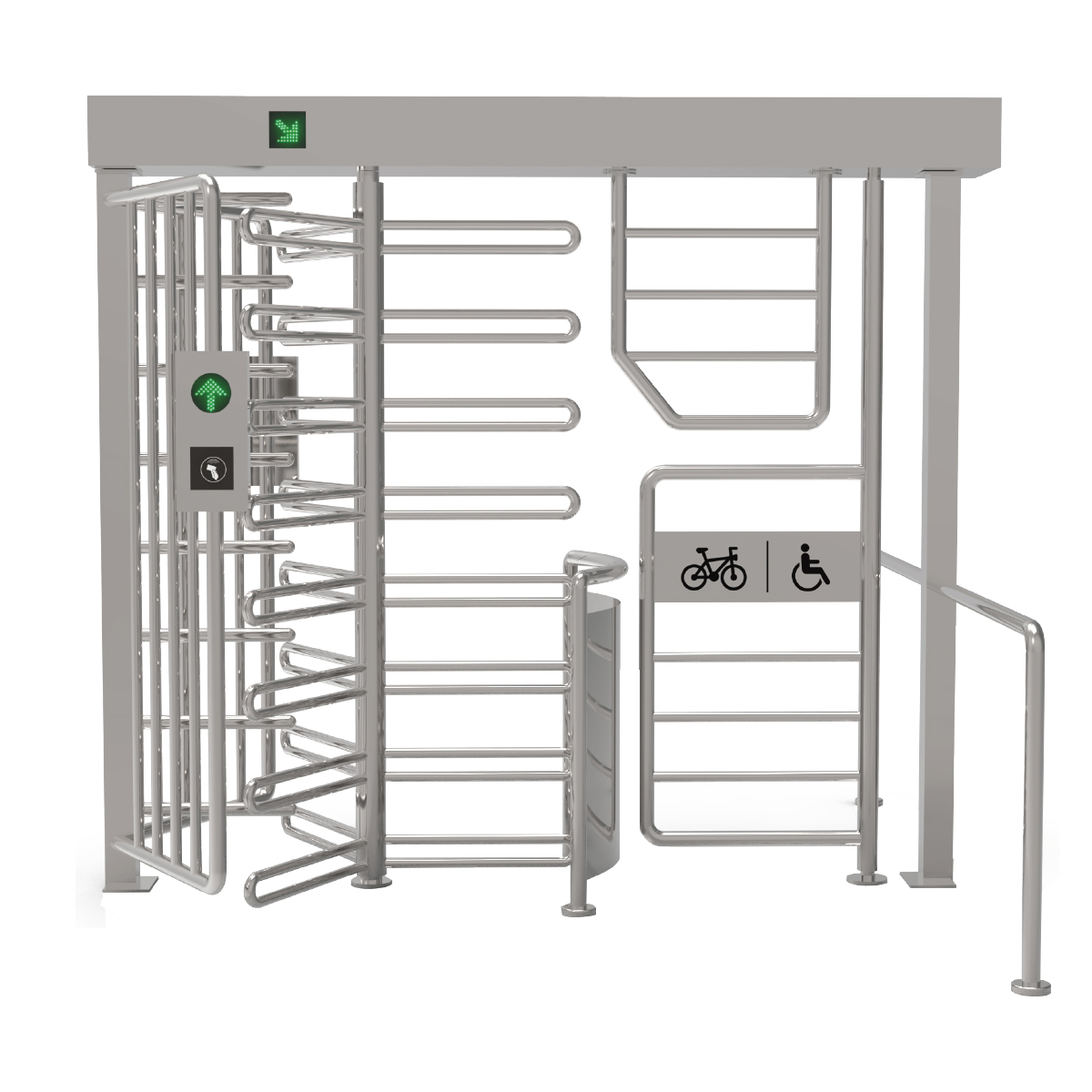

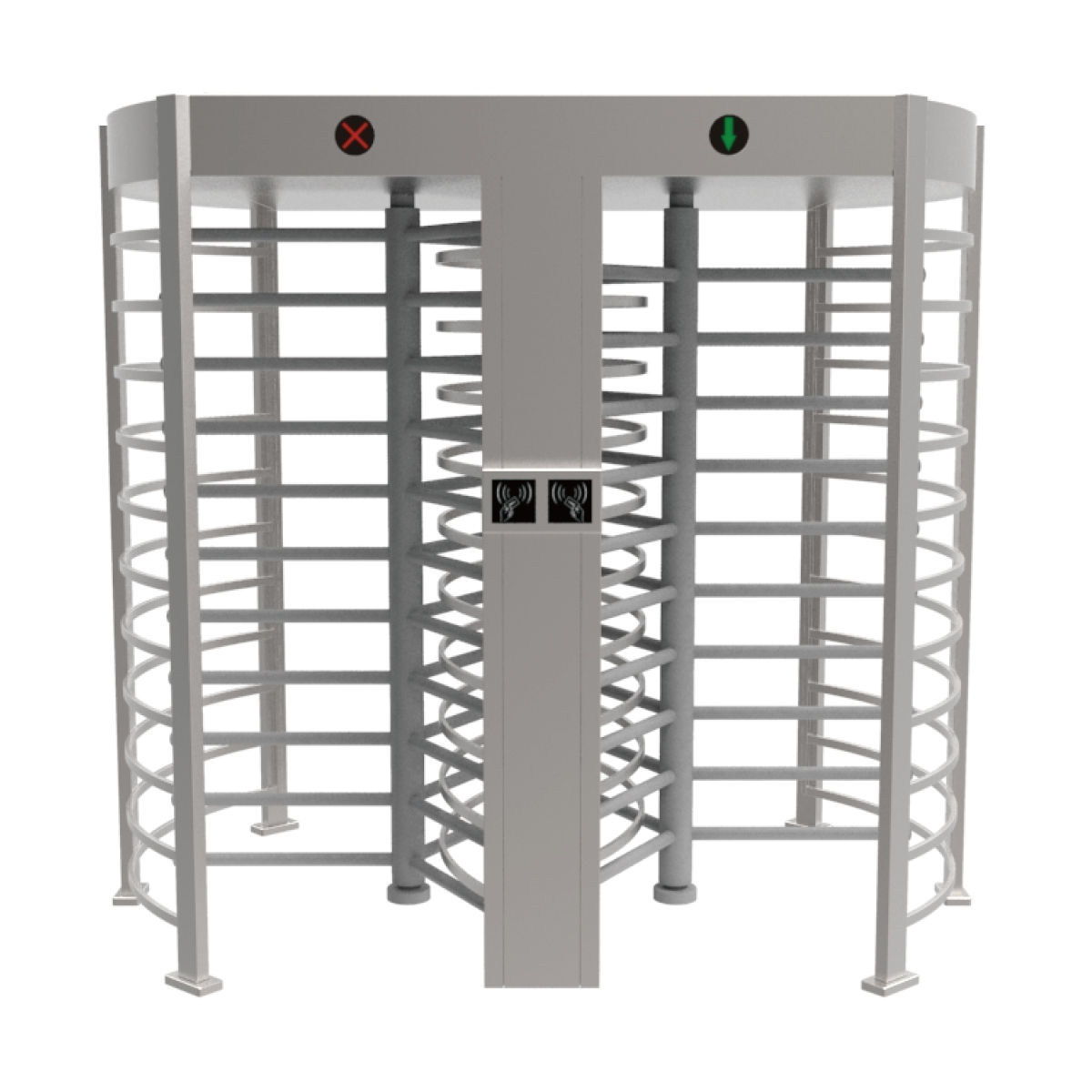

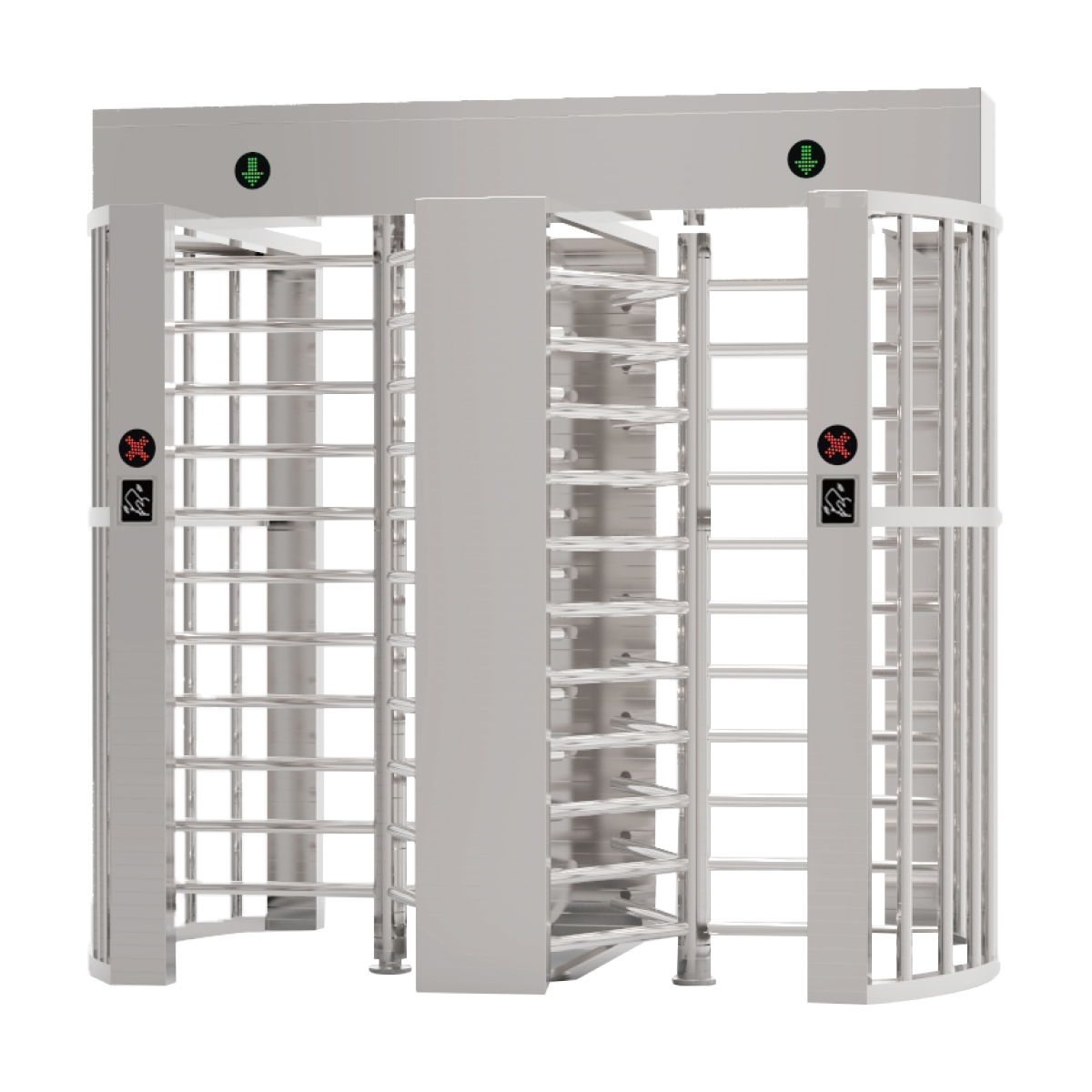

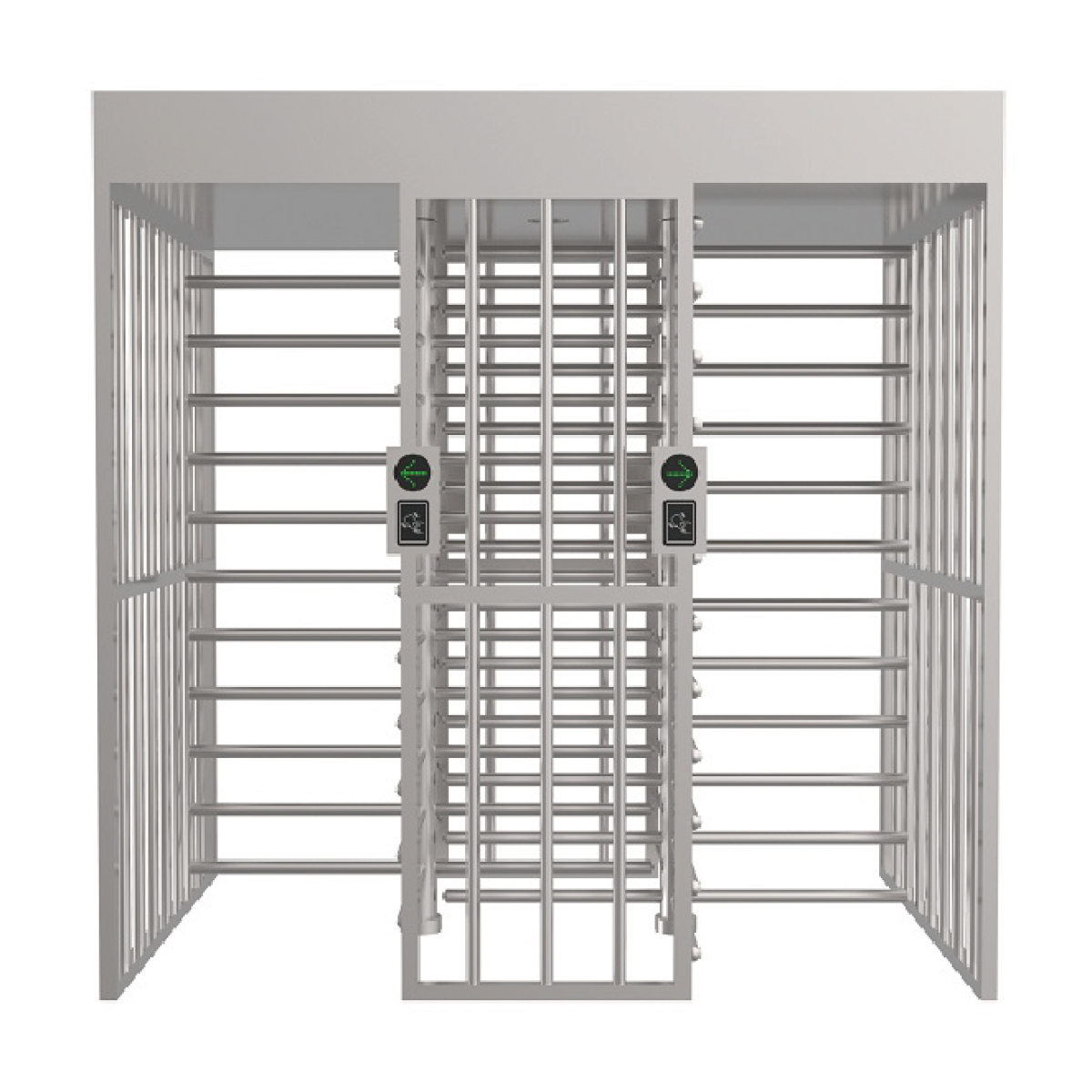

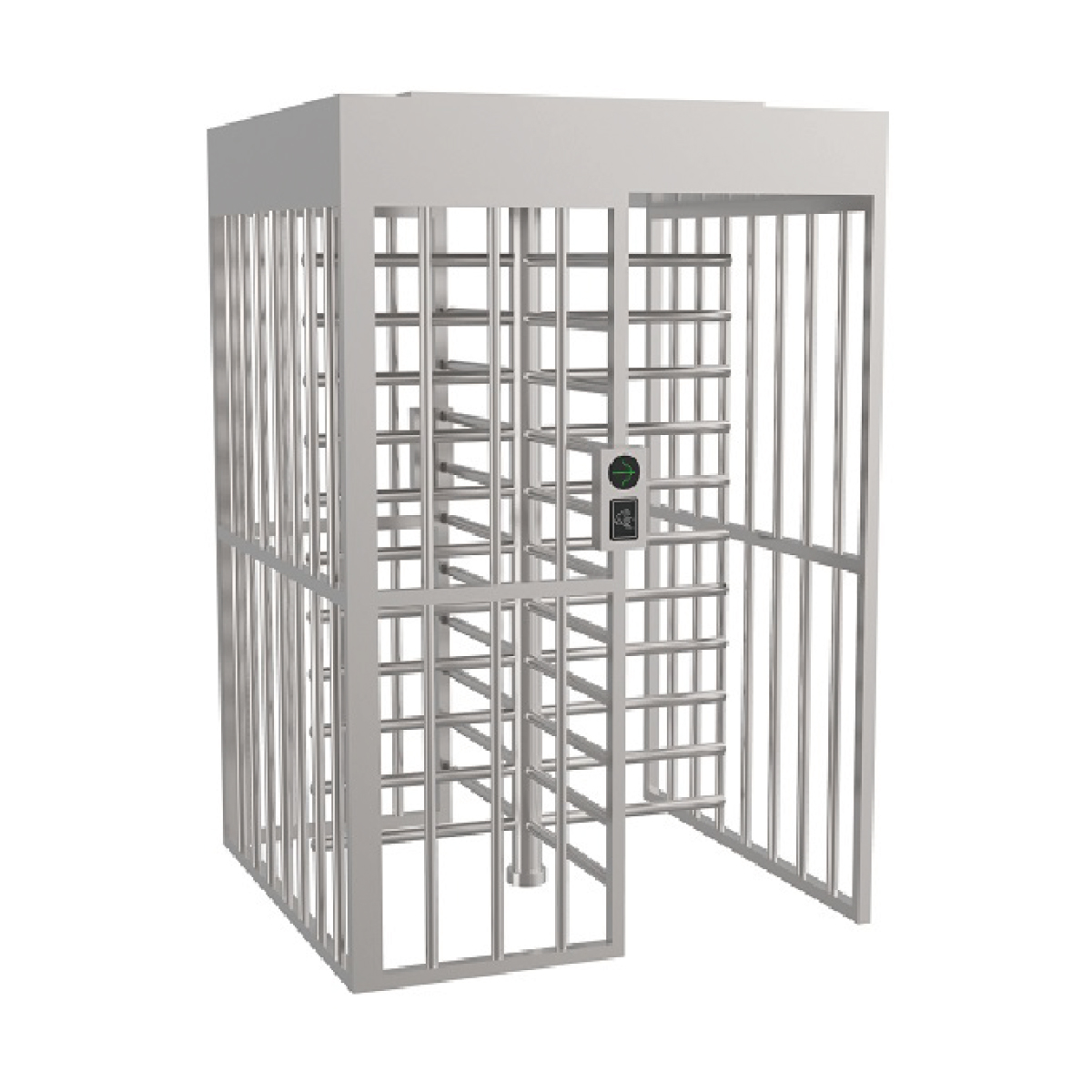

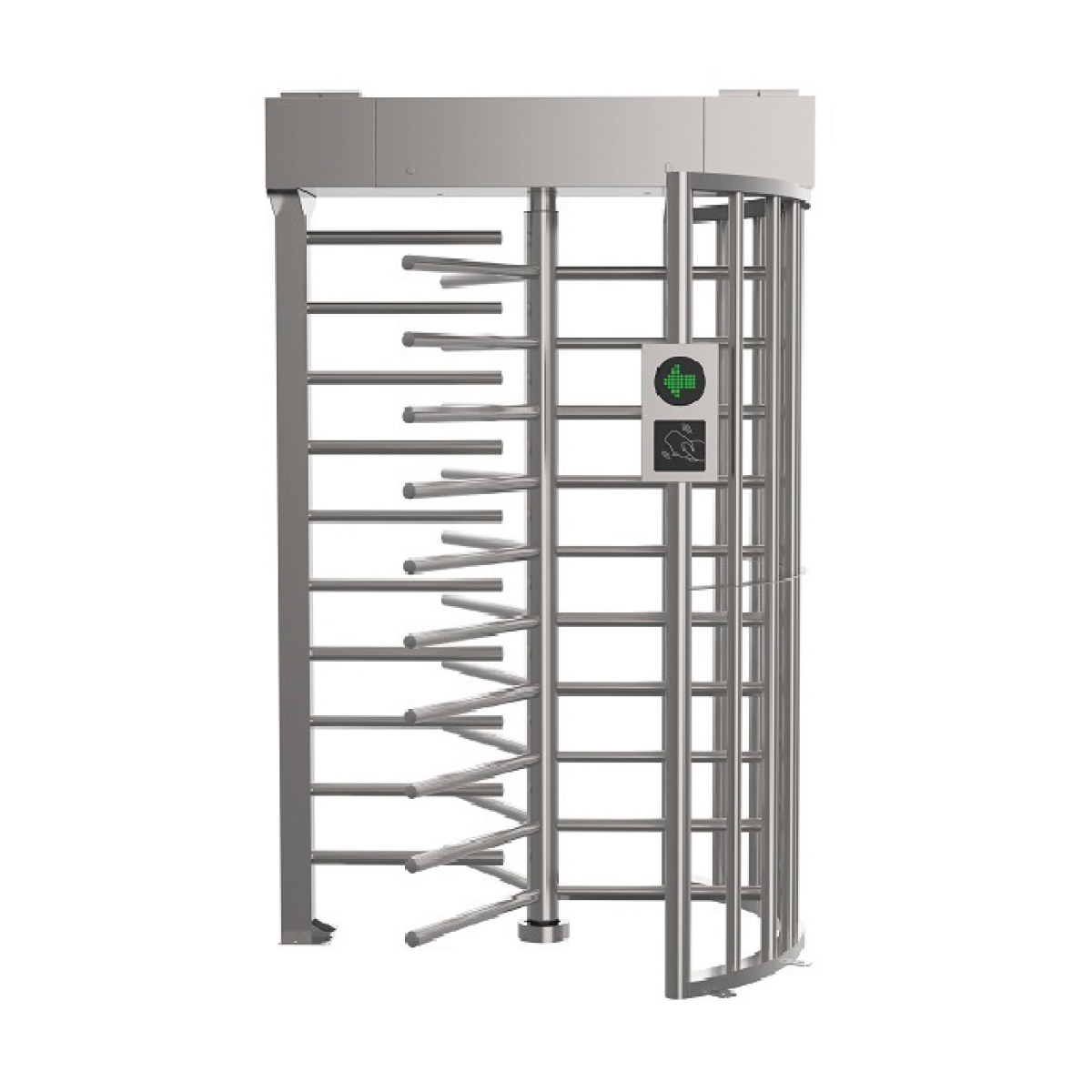

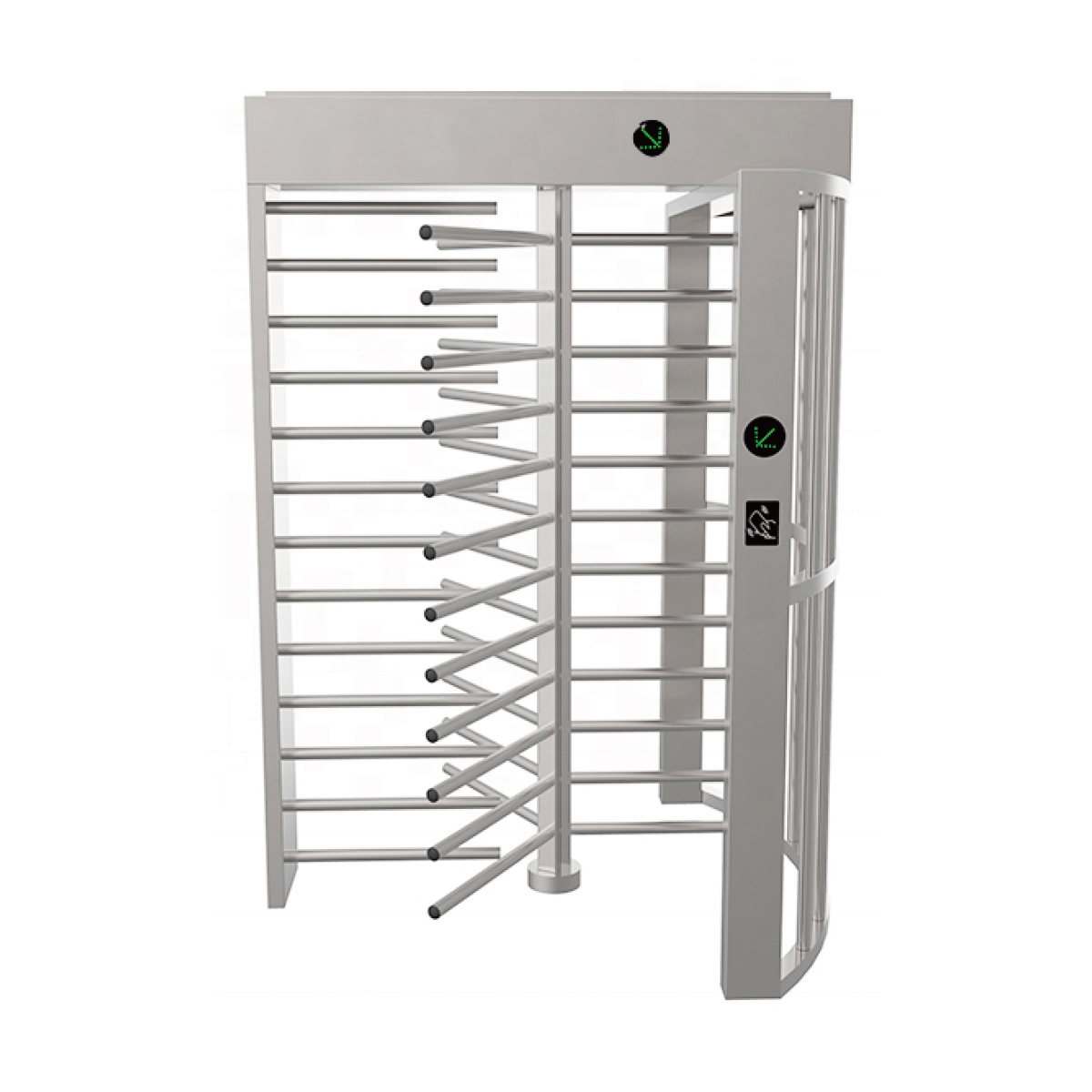

Full-height turnstiles (also called security revolving doors or mantrap turnstiles) provide maximum resistance to unauthorised entry. The rotating 4-arm cage mechanism, typically 2,100–2,300mm tall, permits only one person to pass per credential cycle, with no possibility of jumping over or ducking under the barrier. Full-height turnstiles are the standard for nuclear facilities, data centres, server rooms, prison facilities, and other environments classified as critical security perimeters where a determined adversary must be physically prevented from entry regardless of social engineering attempts. CAME's Minima series provides outdoor-rated full-height turnstiles with IP54 weatherproofing suitable for UAE construction site and industrial facility perimeter access.

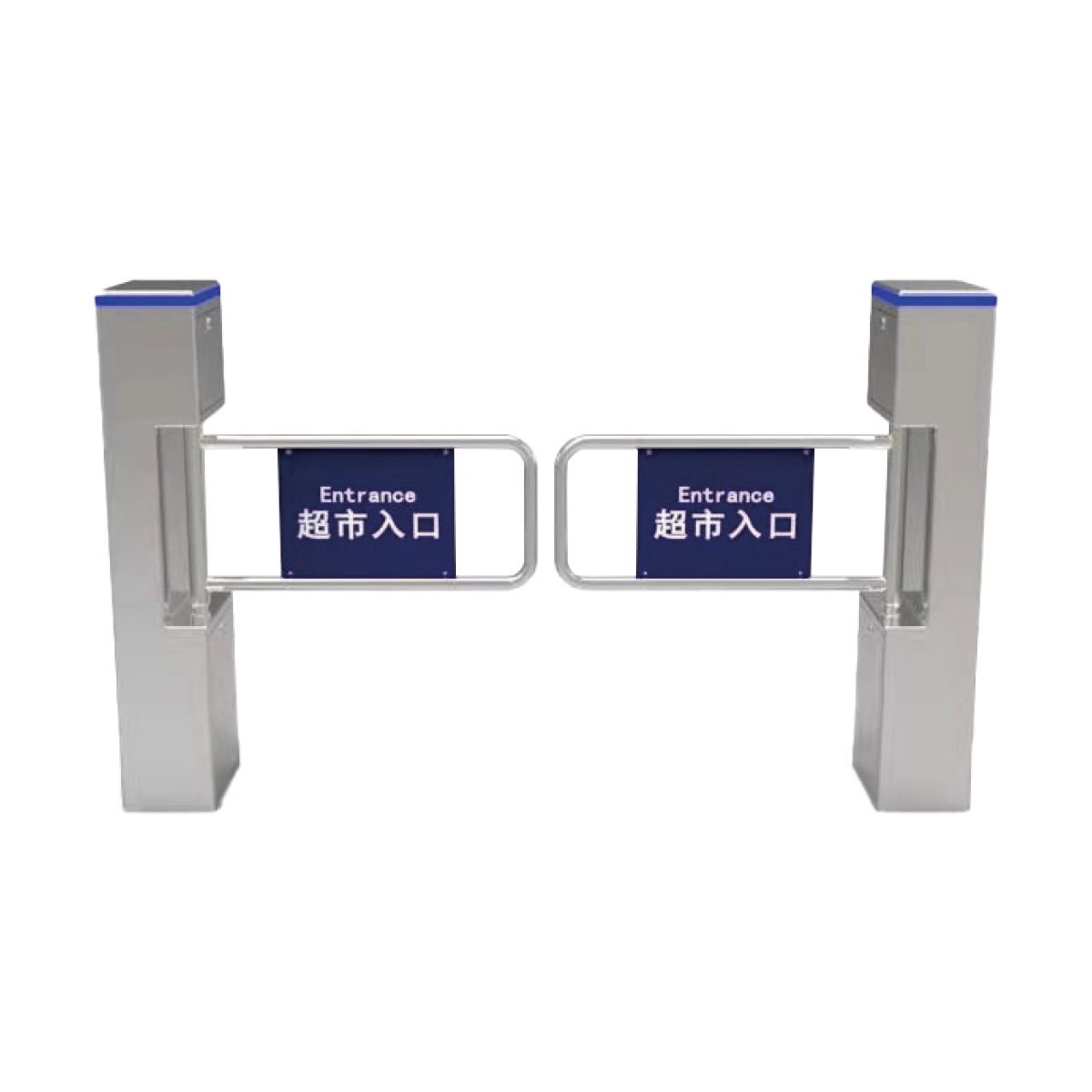

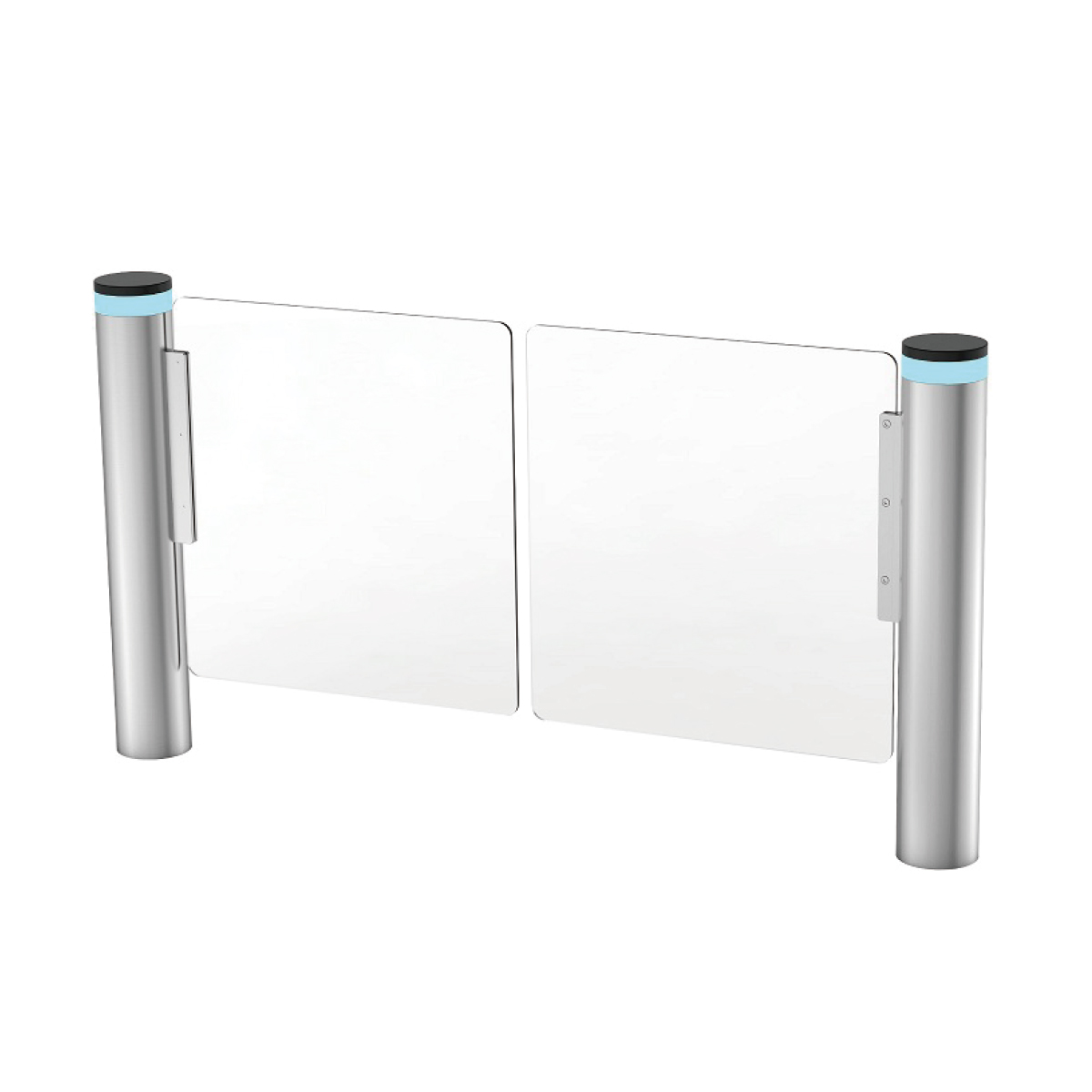

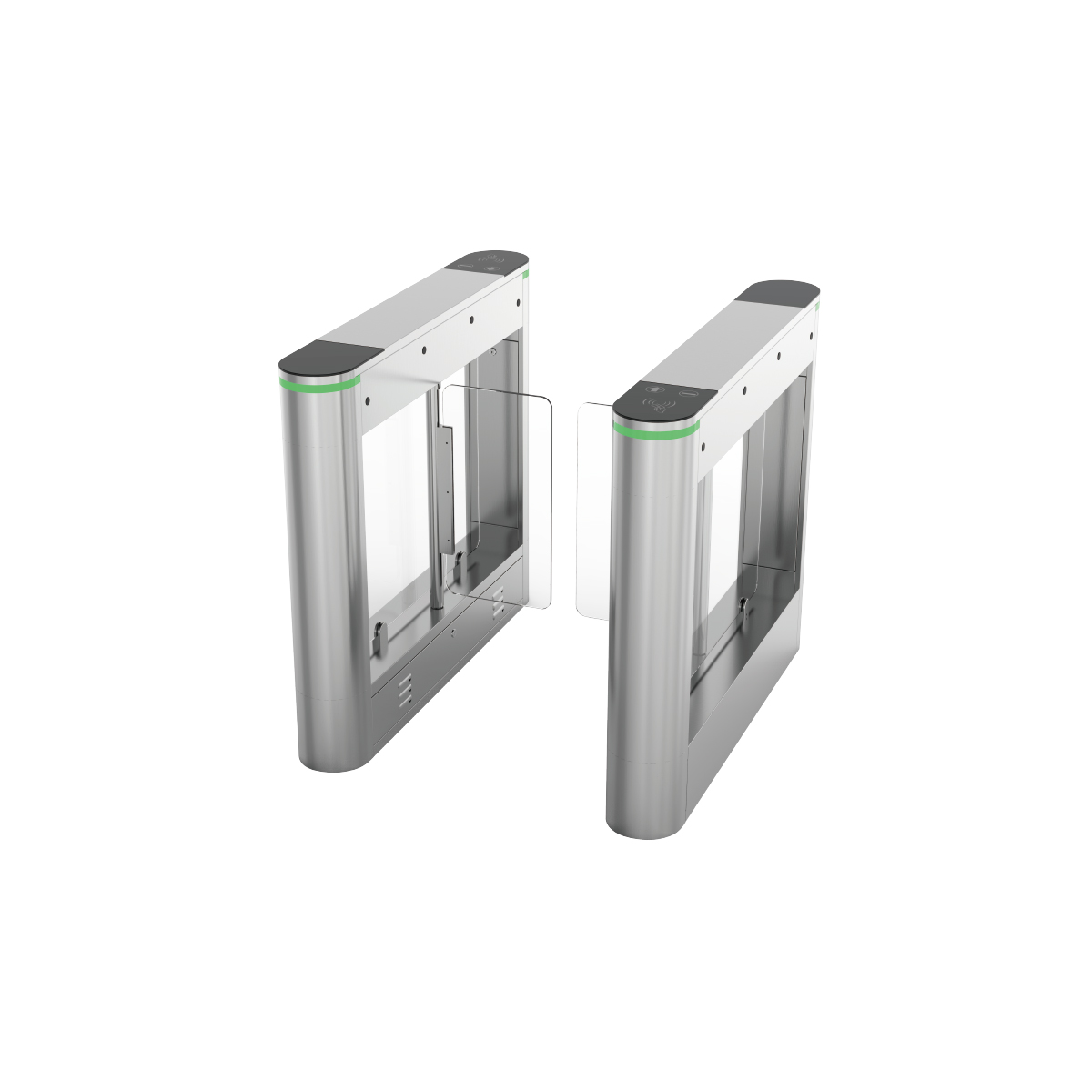

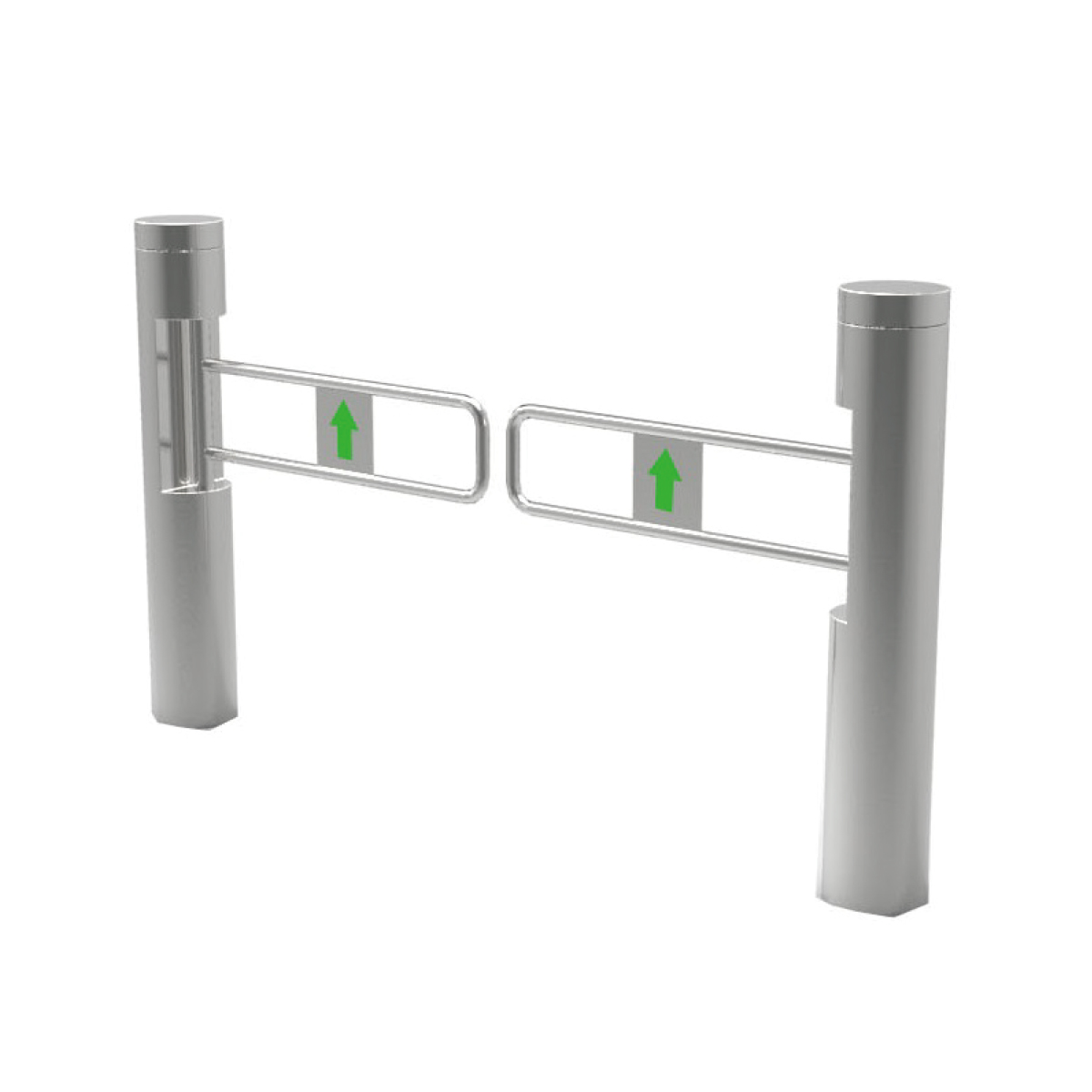

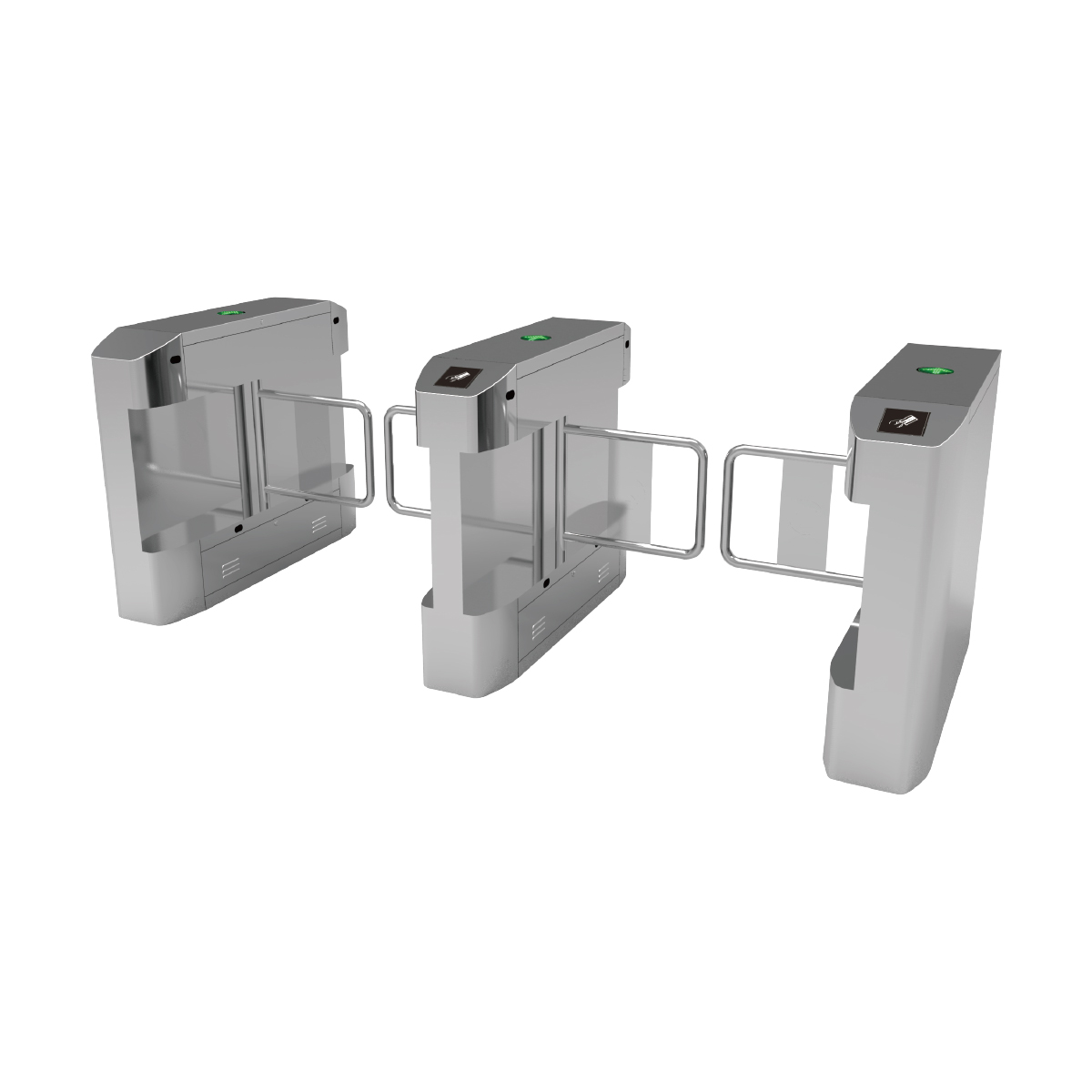

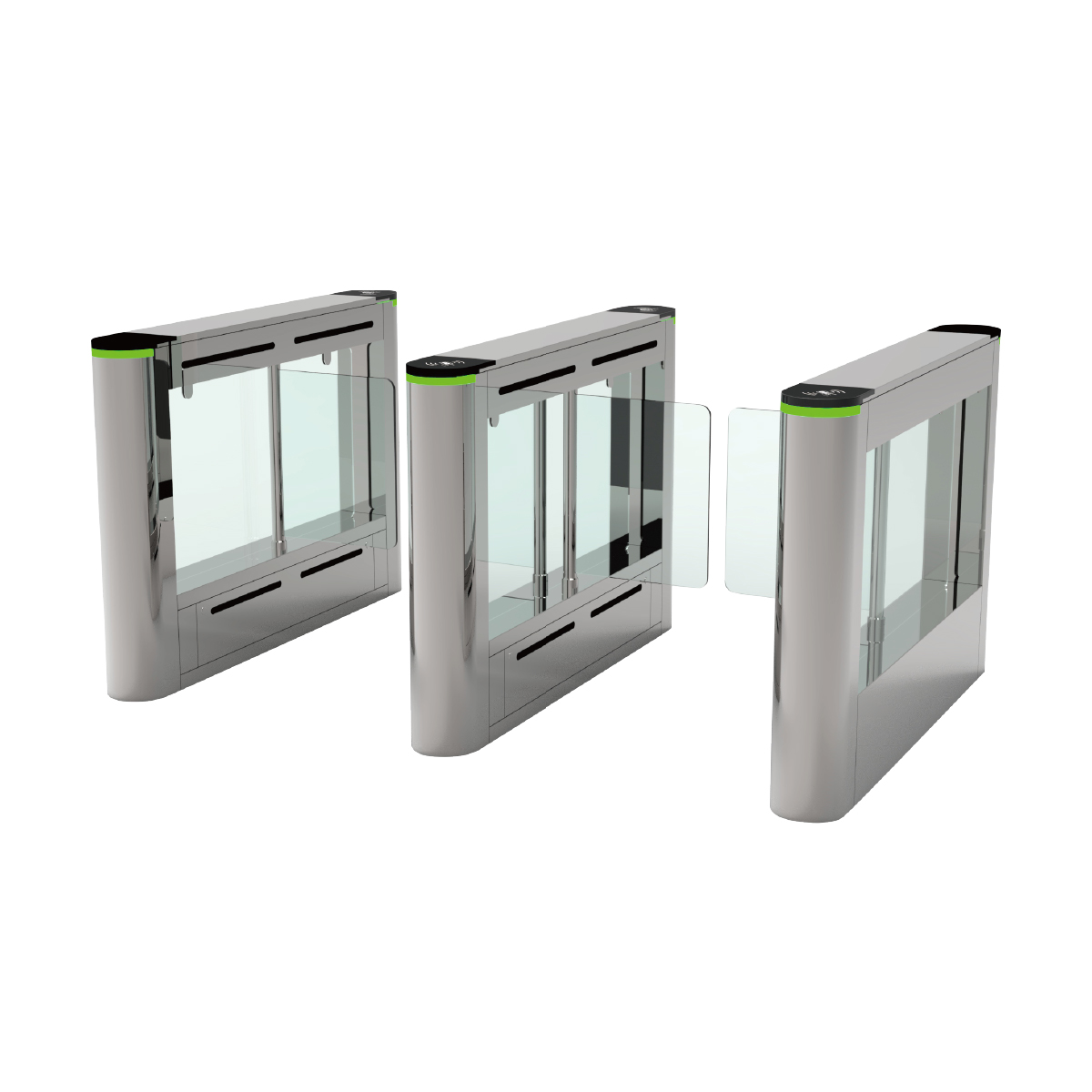

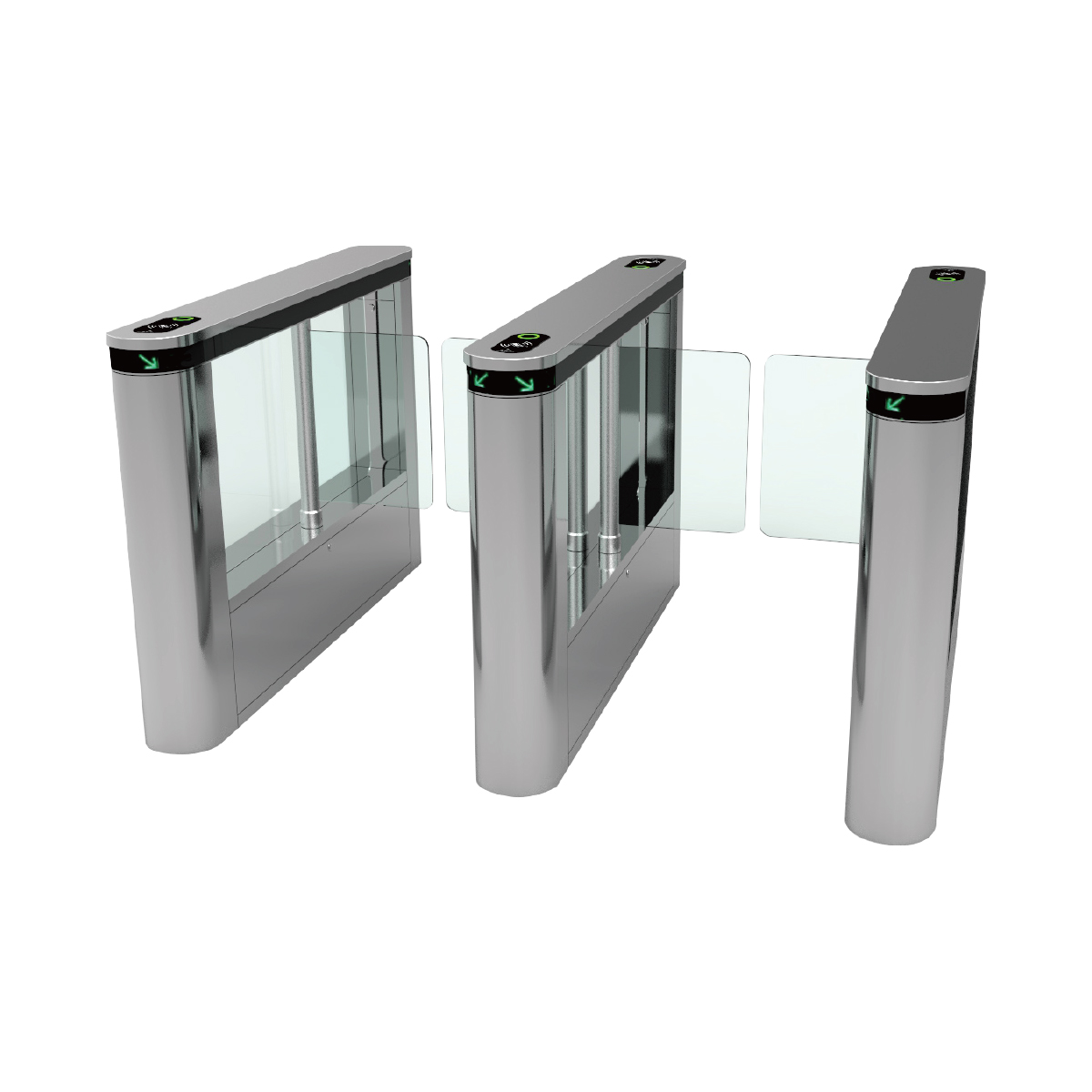

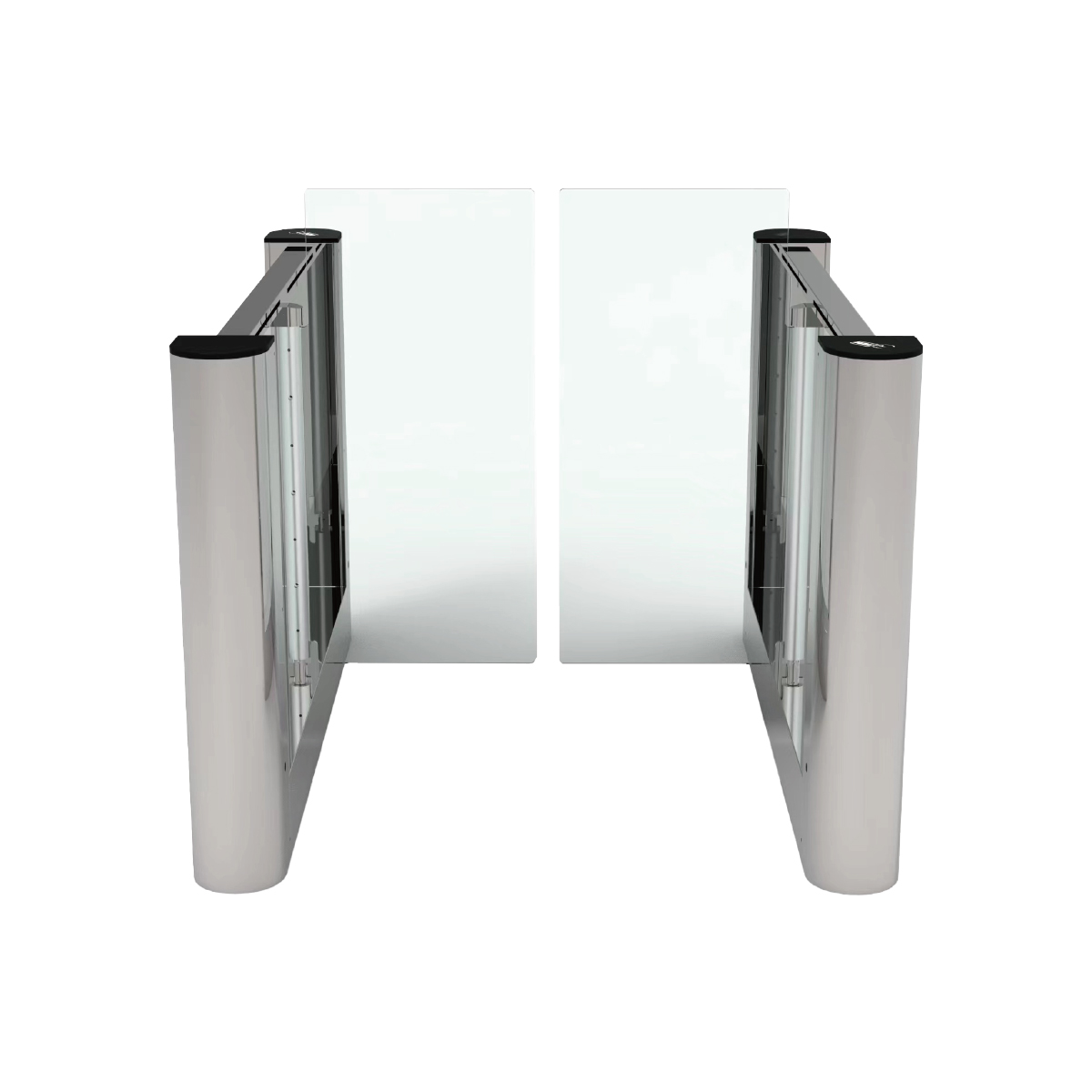

Swing barriers operate on a single panel that rotates 90° to open, providing a wide (900–1,200mm) passage without the mechanical complexity of flap barriers. They are commonly deployed at the end of a tripod turnstile or flap barrier lane row to provide an accessible passage for wheelchair users, pram users, security staff escorting visitors, and deliveries. CAME Stylos and ZKTeco swing barriers include electromagnetic holds that keep the barrier closed except when specifically released by the access control system or operator, preventing passive tailgating through the accessible lane.
Integration with Biometric Readers and Access Control Systems
All ZKTeco and CAME turnstiles and barriers support industry-standard Wiegand input interfaces for connecting third-party card readers, biometric terminals, QR code scanners, and intercom systems. This makes them compatible with virtually any access control credential technology on the UAE market: MIFARE, DESFire, HID Prox, HID iCLASS, and SEOS card readers; ZKTeco SpeedFace and biometric terminals; QR code scanners for visitor management and ticketing systems; and smartphone-based NFC readers for mobile credential deployments. VertiLinks handles complete integration including controller programming, access rules configuration, and VMS linkage for gate-triggered camera recording.
Fire Safety Compliance and Emergency Operation
All turnstiles and barriers supplied by VertiLinks are configured with fire alarm panel integration as standard. On receipt of a dry contact signal from the fire alarm panel, all barriers simultaneously open to free-passage mode, clearing egress routes within seconds. Fail-safe operation is achieved through UPS battery backup maintaining barrier power for 30–60 minutes following main power failure. In fail-open mode (the default for most commercial buildings), barriers unlock on power loss, ensuring emergency egress is never compromised. For high-security environments requiring fail-secure operation (barriers lock on power loss), additional safety analysis and fire brigade consultation is required before installation — VertiLinks manages this process including coordination with DCD (Dubai Civil Defence) approval.
