CAME Gate Barriers

Brushless and telescopic boom barriers engineered for intensive traffic lanes.

Request Quote

Key Benefits of CAME Gate Barriers

High Duty

Up to 10 million cycles on PX brushless platforms.

Connected

Modbus, CAME KEY and CONNECT remote diagnostics.

Configurable

LED crowns, breakaway booms and cabinet finishes.

Best Gate Barriers in UAE

Trusted brands, certified performance, and on-ground implementation support.

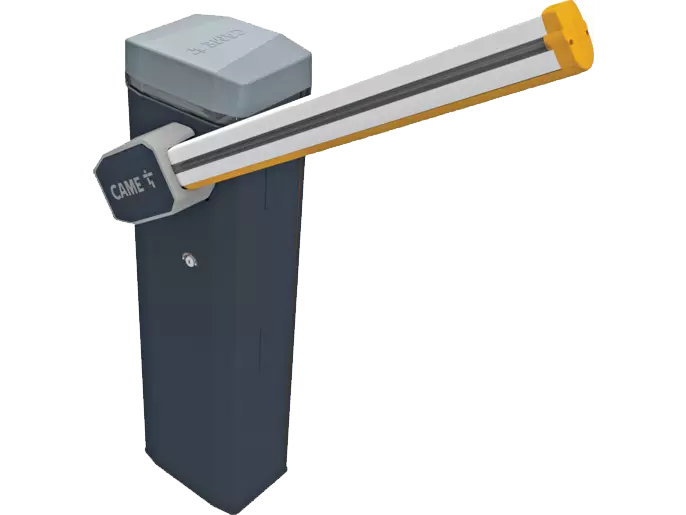

CAME GARD GT4

24 V DC barrier for passages up to 5 m with adjustable speed profiles.

CAME GARD GT4
Key Highlights
  • Automatic Speed Control firmware tunes acceleration and deceleration for every boom length using encoder data.
  • 24 V DC gearmotor holds EN 12453 forces while delivering 350 cycles/hour and a 3-million-cycle lifespan.
  • Integrated red/green LED crown and octagonal cabinet improve visibility while sealing the chassis to IP54.
  • CAME CONNECT with Setup and Automation apps enables remote configuration over Ethernet, Wi-Fi, or GSM gateways.
  • Supports advanced safety inputs compliant with EN ISO 13849-1 and EN 12453 for photocells, edges, and scanners.

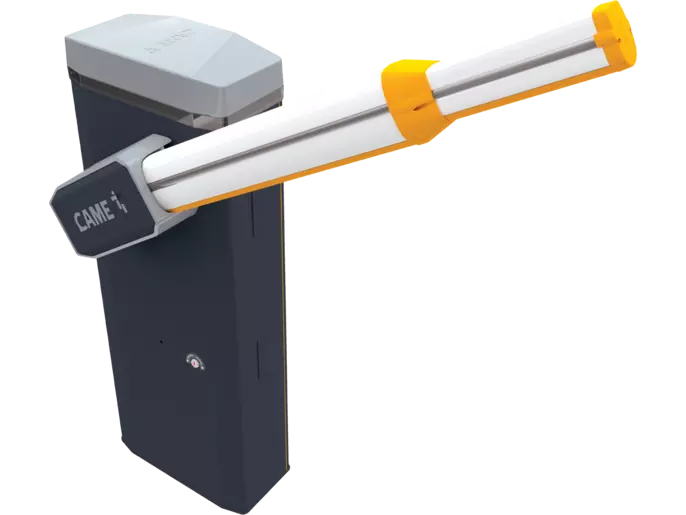

CAME GARD GT8

Wide carriage barrier covering extended passages with intensive-use components.

CAME GARD GT8
Key Highlights
  • Firmware-managed Automatic Speed Control optimises acceleration and deceleration for every 4–8 m boom.
  • 3-million-cycle mechanics with 160 cycles/hour throughput protect wide industrial entrances.
  • Breakaway boom joints and optional magnetic locks minimise damage and deter forced entry.
  • Supports full-height skirts, LED crowns, and custom RAL or stainless cabinets for tailored visibility.
  • CAME CONNECT cloud monitoring plus Setup App tools keep installers informed without site visits.

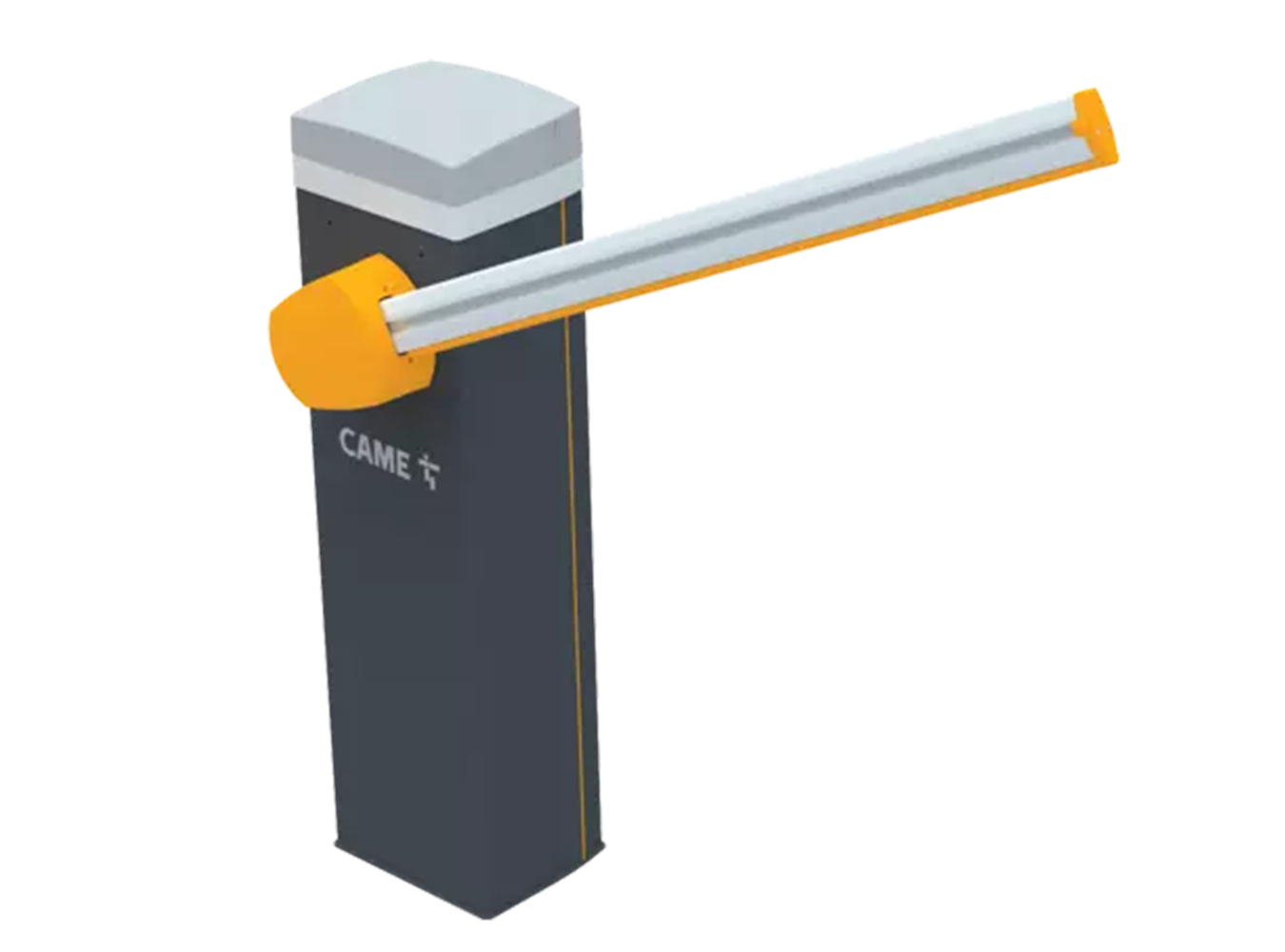

CAME GARD PX

Brushless 36 V DC barrier delivering sub-2-second openings.

CAME GARD PX
Key Highlights
  • Brushless 36 V DC gearmotor delivers continuous duty with 1–2 second travel across 3.8 m booms.
  • Automatic firmware calibration keeps motion smooth by reading encoder feedback every cycle.
  • Cabinet reverses from left to right via an intermediate plate with no internal disassembly.
  • Startup takes three steps: select opening direction, input boom length, and run the guided calibration.
  • Compatible with CAME CONNECT diagnostics so support teams receive proactive alerts.

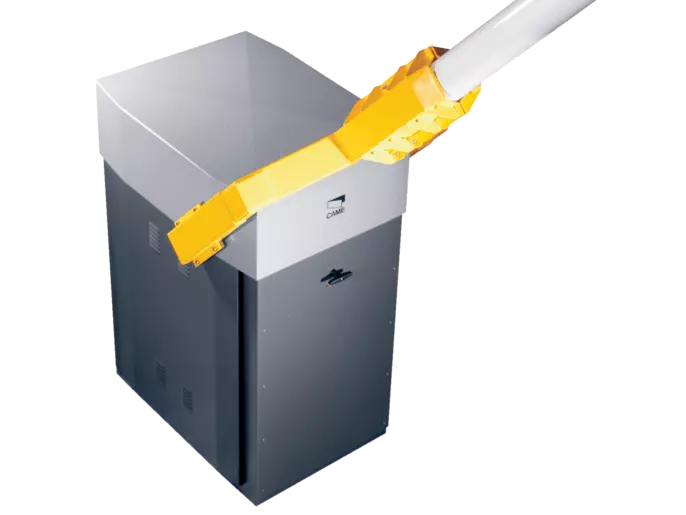

CAME GARD 12

Dual-motor telescopic boom reaching clearances up to 12 m.

CAME GARD 12
Key Highlights
  • Two synchronized 24 V motors operate in parallel to keep extra-long booms steady.
  • Transmission levers with counterweight balancing smooth the 10-second travel stroke.
  • Jointed telescopic boom segments adjust on site to match any driveway width up to 12 m.
  • 50% duty components are rated for roughly 600,000 cycles in heavy industrial service.
  • RAL 7043 galvanized cabinet accepts matching accessories and protective finishes.

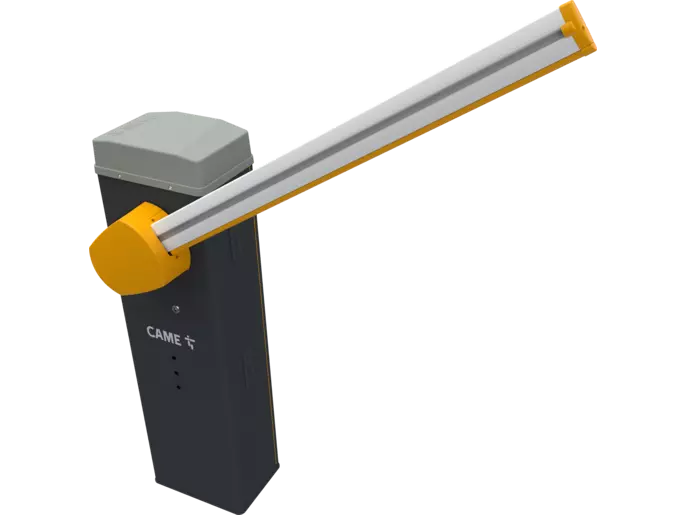

CAME GARD LS4

Compact intensive-use barrier for passages up to 3.8 m.

CAME GARD LS4
Key Highlights
  • Automatic Speed Control with encoder feedback keeps 2–6 second profiles smooth and quiet.
  • Intermediate mounting plate lets teams reverse the opening direction without dismantling components.
  • Accepts folding skirts, articulated booms, breakaway joints, and LED strips to suit tight garages.
  • CAME CONNECT and Automation apps enable Ethernet, Wi-Fi, or GSM remote diagnostics for service teams.
  • Offered in galvanised, stainless, or custom RAL cabinetry to match mixed-use developments.

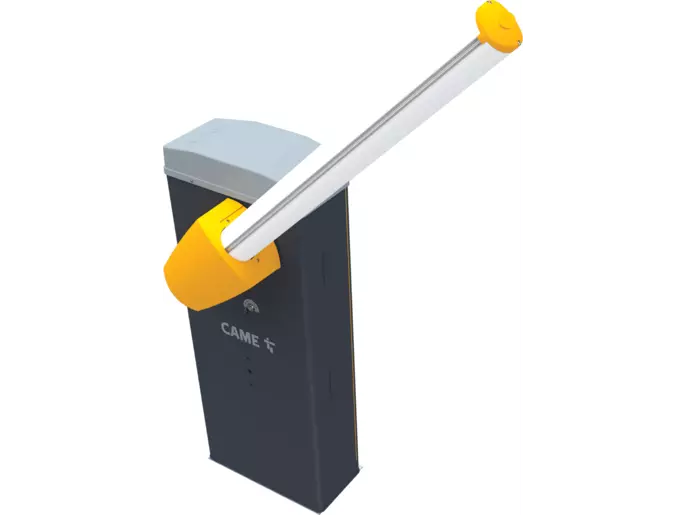

CAME GARD LS6

High-frequency 6.5 m barrier for logistics and industrial yards.

CAME GARD LS6
Key Highlights
  • Automatic Speed Control manages acceleration for long booms while encoder data enforces safety limits.
  • Handles roughly 160 cycles/hour thanks to hardened drivetrain components.
  • Intermediate plate means the cabinet can switch from left to right opening without tearing down internals.
  • Accessory ecosystem covers folding skirts, safety edges, breakaway joints, and LED indicators for warehouses.
  • CAME CONNECT plus CAME KEY programming allow installers to push updates and receive alerts remotely.

CAME CAT Chain Barrier

Discrete chain barrier system covering 8–16 m passages.

CAME CAT Chain Barrier
Key Highlights
  • Covers 8–16 m passages using raised chain span
  • Available in 230 VAC or 24 V DC versions
  • Supports CAME CONNECT for remote status monitoring
  • Robust steel construction with configurable colours
